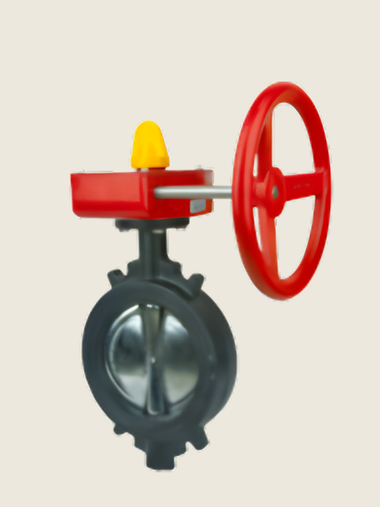

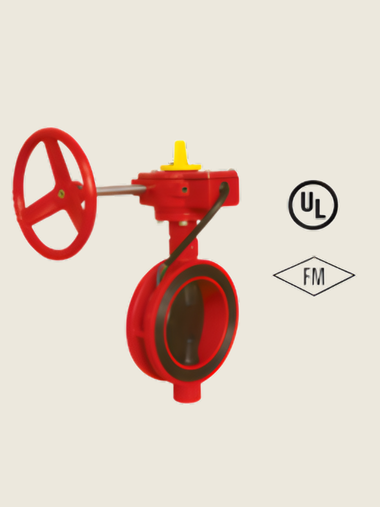

Butterfly Vavles

MODEL:

SDBV-W300

SPECIFICATIONS

Size    2 ½” through 8”

Working Pressure    300 psi (21.5 Bar)

Max. Test Pressure 600 psi (43 Bar)

Working Temperature         250° F (120° C)

Factory-installed UL  -UL-approved tamper Switch for indoor use only

MATERIAL

Body               Ductile Iron, Nylon – 11 Coated

Disc                Al-Bronze, Ductile Iron, EDPM

Stem               Stainless Steel, Hardened & Tempered

Housing         Ductile Iron (ASTM A-536)

Hand Wheel Ductile Iron (ASTM A-536)
